- 3-in-1 stainless steel brazed plate heat exchanger with integral separator ensures optimal dew point performance under all conditions
- Compact design uses 40% less floor space
- Low pressure drop reduces operating costs
- User friendly controller

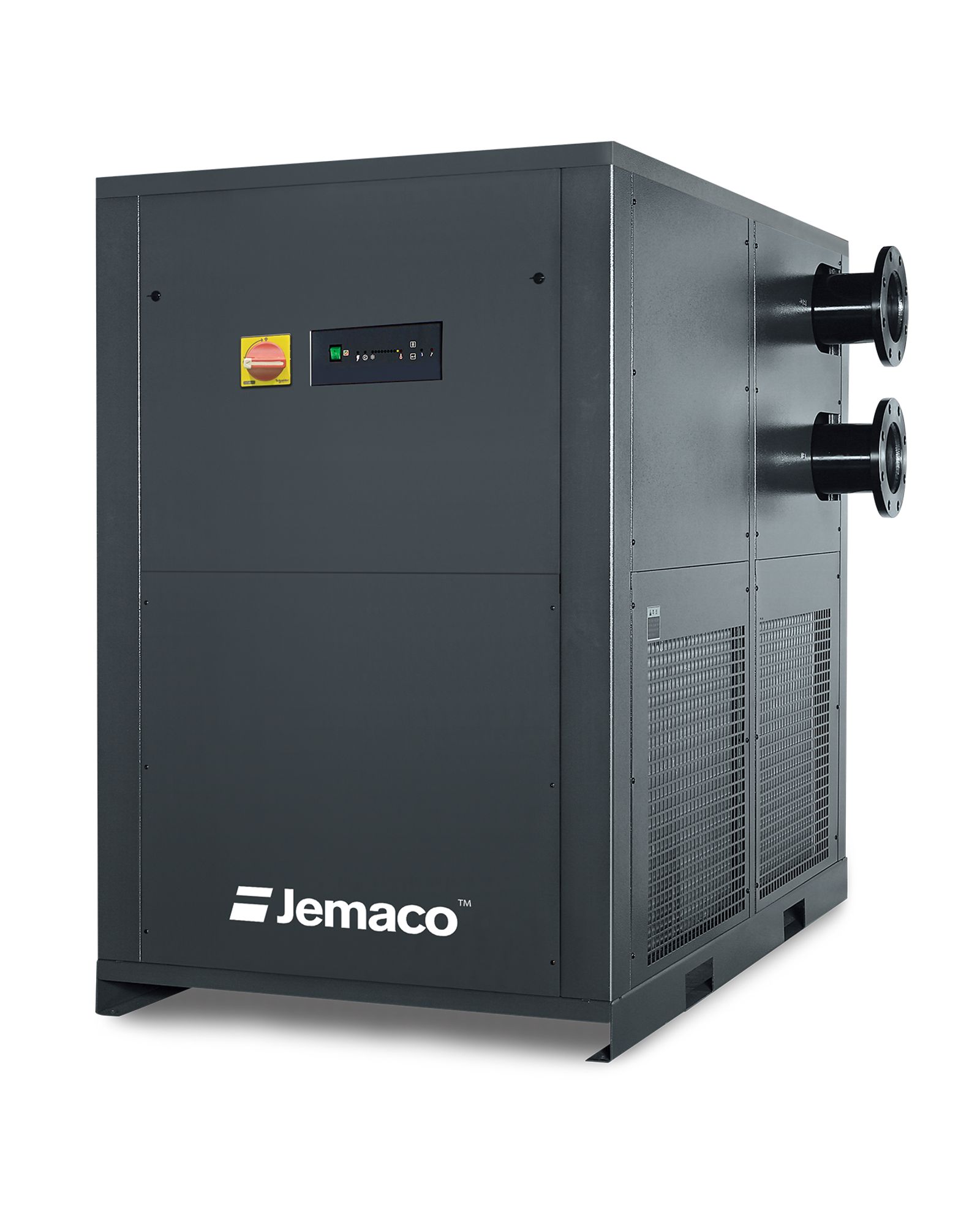

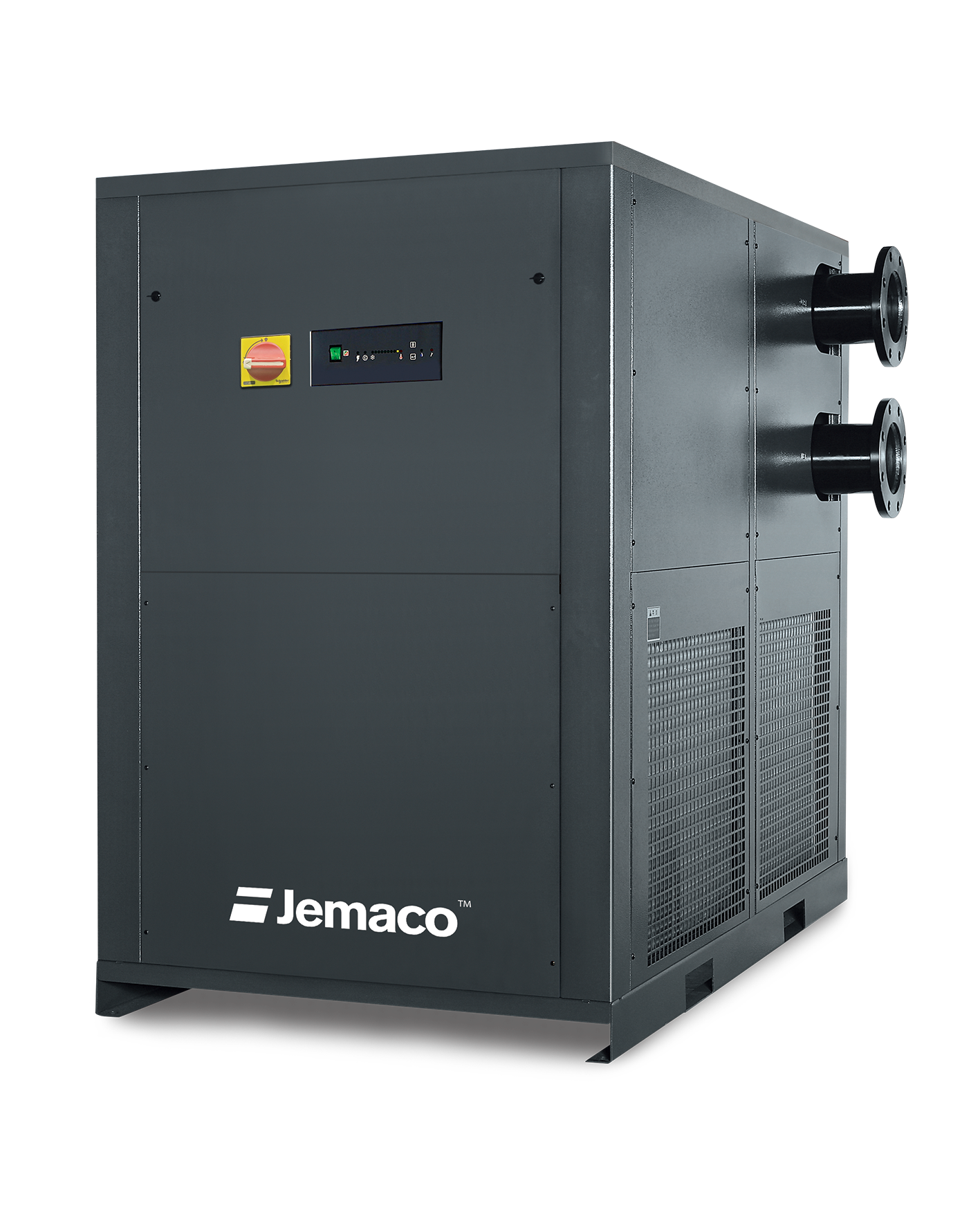

Large size Refrigerated Air Dryer
The HXK series utilizes advanced heat exchanger, separation and refrigeration technology.
It’s a revolutionary that uses an innovative, simplified refrigeration circuit to provide dependable operation, low operating cost and versatile installation.
Performs in rated conditions of 75 to 600 scfm.
- Reliable timed electric drain with push-to-test button on the front panel
- Electro-galvanized steel cabinet with two part epoxy coating
- Environmentally friendly R-134a and R-407C refrigerants
- Optional / No loss drain valve
- Warm, saturated compressed air enters the air-to-air heat exchanger and is cooled by the exiting air.
- The precooled air then enters the air to refrigerant heat exchanger and is further chilled causing water vapor to condense.
- Condensed moisture is collected from the air stream by an integral separator with stainless steel demister.
- Liquid condensate is removed from the separator by an automatic timed electric drain.
- Cold air is then reheated in the air-to-air heat exchanger to eliminate pipe line sweat.
