TXK SERIES
Compact Refrigerated Air Dryer
Research indicates that many customers want reliability and dry compressed air at an affordable price.
The TXK series non-cycling just dry air, pure and simple.
The TXK series non-cycling dryers were designed to meet these demands.
Share
- Static condenser with no cooling fan
- Perfect application for indoor installation such as hospital and laboratory
- Robust design & compact size
- Unique refrigerant control system
- Energy saving through waste heat recovery
- Excellent dew point performance under all conditions
- Warm saturated air enters the evaporator where it is cooled by refrigerant being controlled by a constant pressure expansion valve.
- Water vapor condenses into a liquid for removal at the moisture separator by a drain.
- The cold, dry air is reheated as it passes through the re-heater.
- This prevents dryer outlet air pipeline sweating.

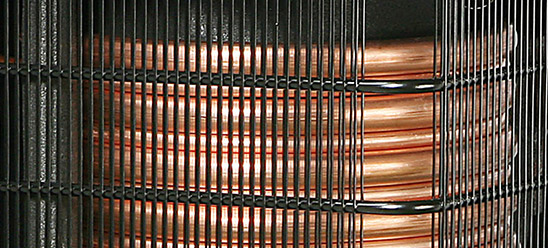

- The Static condenser eliminates the need for a cooling fan and simplifies the system.

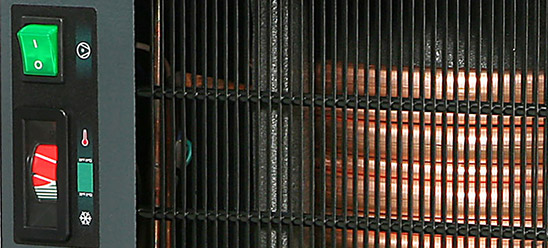

Features
- Static condenser with no cooling fan
- Perfect application for indoor installation such as hospital and laboratory
- Robust design & compact size
- Unique refrigerant control system
- Energy saving through waste heat recovery
- Excellent dew point performance under all conditions

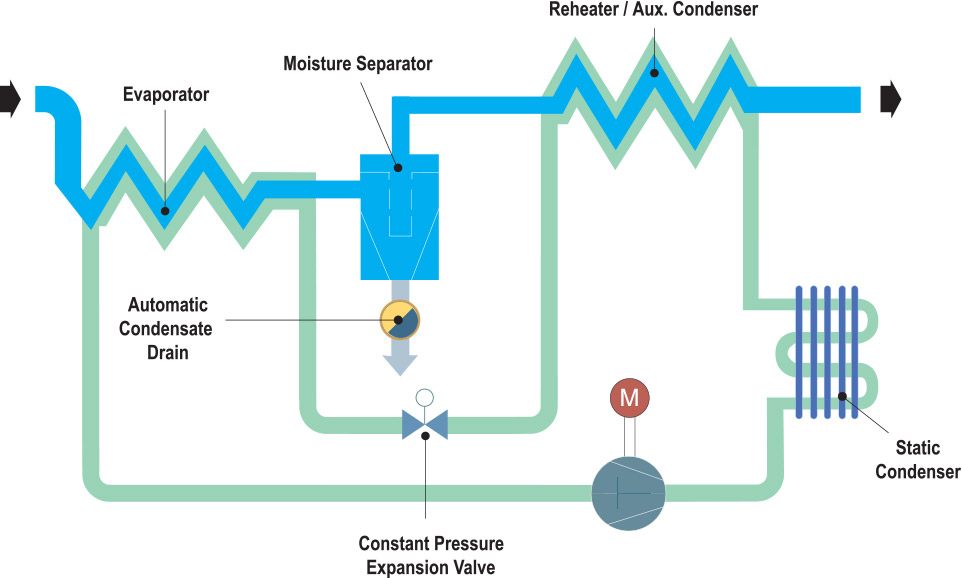

Operating fundamental
- Warm saturated air enters the evaporator where it is cooled by refrigerant being controlled by a constant pressure expansion valve.
- Water vapor condenses into a liquid for removal at the moisture separator by a drain.
- The cold, dry air is reheated as it passes through the re-heater.
- This prevents dryer outlet air pipeline sweating.
- The Static condenser eliminates the need for a cooling fan and simplifies the system.
